YD-TQ1000-DS

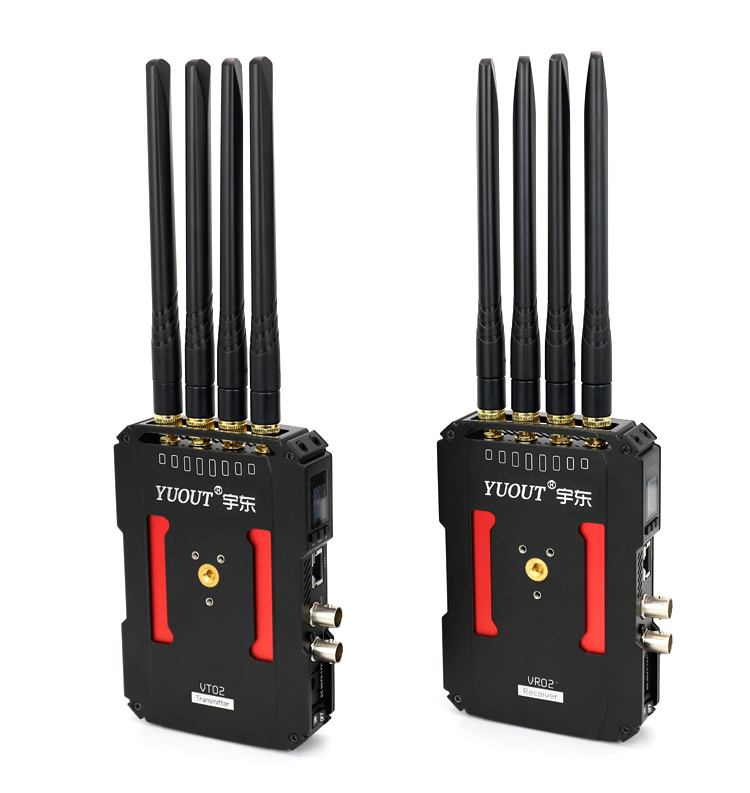

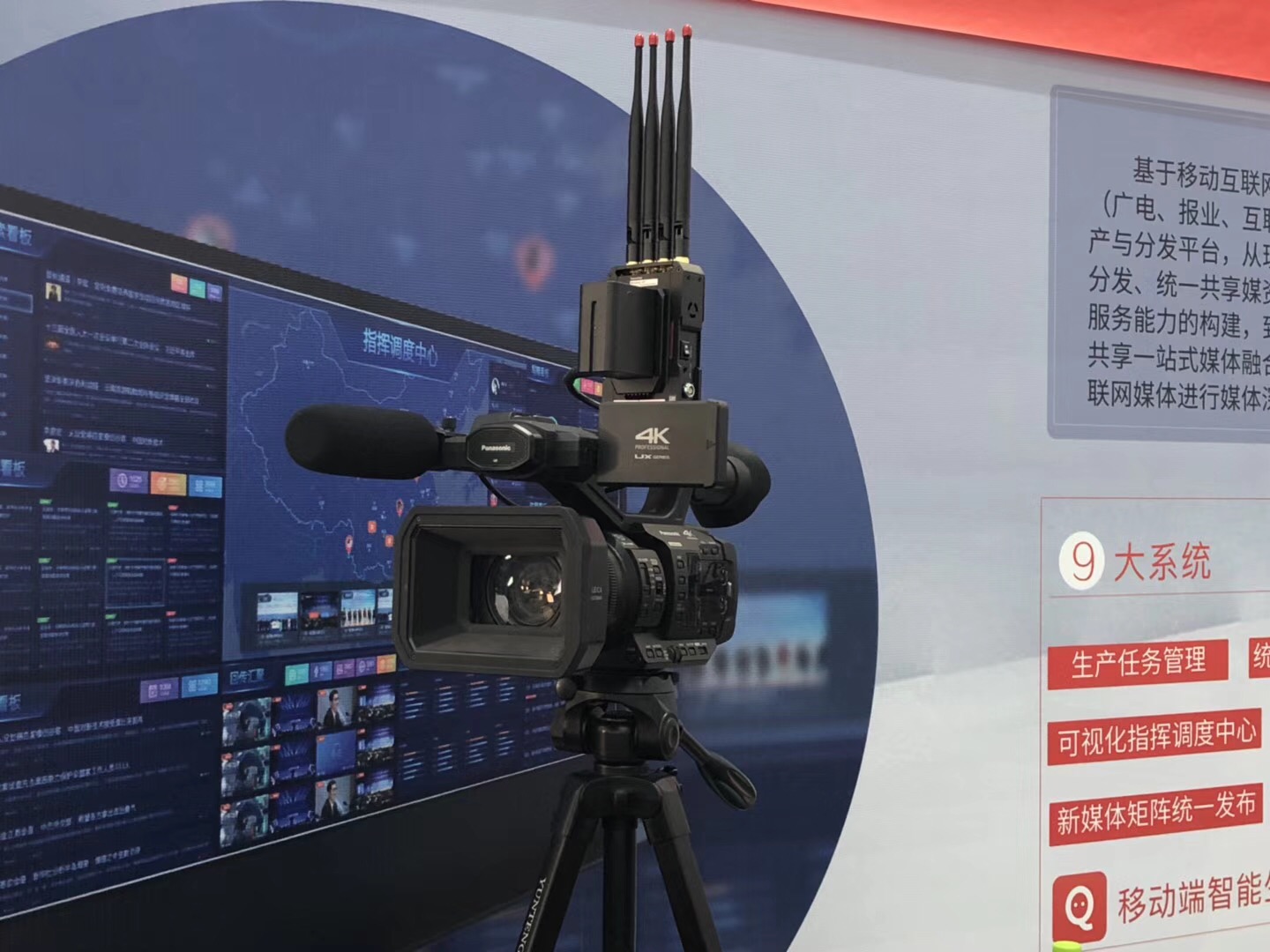

YD-TQ1000-DS is composed of transmitter and receiver, support 3G/HD/SD-SDI or HDMI 1080P full HD signal transmission, as a picture transmission, the line of sight unblocked transmission distance of 1000 to 1500 meters. The frequency band adopts 5.1-5.8GHz, which supports the user's manual communication frequency adjustment, pairing the transmitter and the receiver, and also supports the broadcast mode, which can set multiple receivers to the same frequency as a transmitter to achieve one more reception. Pure hardware connection operation, simple and reliable. Compact design, can be F970, V port, power adapter three power supply, easy to move shooting. It is widely used in film shooting, emergency rescue, fire fighting, civil air defense, armed police, individual video collection in emergencies, etc. Real high-definition wireless transmission, mobile real-time transmission
|
發射機*1
|
接收機*1
|
|
|
接收靈敏度
|
/
|
-70dBm
|
|
發射功率
|
17dBm
|
/
|
|
工作頻率
|
5.1~5.8 (GHz)
|
|
|
天線方式
|
4×4 5dBi外置天線
|
|
|
整機功耗
|
12W
|
7-9W
|
|
傳輸延時
|
70ms
|
|
|
信道帶寬
|
40MHz
|
|
|
工作電壓范圍
|
DC 12V/2A(7-17V)
|
|
|
傳輸范圍
|
點對點模式800米
|
|
|
產品尺寸（mm）
|
142.5(L)×97(W)×33.5(H)
|
|
|
視頻格式
|
1080P,1080i,720P,576P,576i,480P,480i
|
|
|
音頻格式
|
PCM, MPEG-2
|
|
|
功能接口
|
LAN接口；SDI LOOP OUT；SDI IN；DC IN 12V；TALLY OUT;音頻輸入；RS422；HDMI IN
|
LAN接口；SDI OUT；DC IN 12V；TALLY IN;音頻輸入；RS422；HDMI OUT
|
